Wiring a transfer switch isn't just another step in setting up a home backup generator—it's the most critical one. This is the device that safely connects your standby generator to your home’s electrical system, isolating you from the utility grid during an outage. It's what prevents dangerous back-feed and allows for a smooth, safe transfer of power.

Because this task involves your home's main electrical panel, it should always be handled by a licensed electrician. There's simply no room for error when dealing with your home's high-voltage system.

Why a Transfer Switch is the Heart of Your Backup System

Before we get into the details, it’s important to understand exactly what this device does. Think of a transfer switch as the brain of your home backup power system. It’s a smart electrical device that directs the flow of electricity into your home, making sure power only comes from one source at a time—either the grid or your generator.

This single function is what makes a generator installation safe. When the power goes out, the switch physically disconnects your home from the utility lines. This prevents "back-feed," a highly dangerous situation where electricity from your generator travels back down the power lines, potentially injuring or killing line workers who are trying to restore power.

Automatic vs. Manual Switches

You'll run into two main types of transfer switches, and the one you choose will completely change your experience during an outage.

• Manual Transfer Switch: Just like it sounds, this type requires you to physically go out and flip a switch to move your home's power source from the grid to the generator. It gets the job done, but it’s a hands-on solution.

• Automatic Transfer Switch (ATS): This is the modern, set-it-and-forget-it option for home backup generators. An ATS constantly monitors the power coming from the utility. The instant it senses an outage, it automatically starts your generator and transfers your home’s electrical load—all within a matter of seconds.

For most California homeowners who prioritize convenience and reliability, an automatic transfer switch is the clear winner. You don’t have to lift a finger when the lights go out. The system takes care of everything, ensuring your refrigerator, HVAC, and other essentials stay powered on without any interruption. If you're curious, you can explore a deeper dive into how an automatic transfer switch works to really appreciate the engineering behind it.

A professionally installed transfer switch is not just a convenience—it's a mandatory safety device required by the National Electrical Code. It’s the only approved method for connecting a backup generator to your home's electrical system, protecting both your property and utility personnel.

Preparing for a Safe Installation

Let’s be clear: working with your home’s electrical system is a serious undertaking. This isn’t like hanging a ceiling fan. Wiring a generator transfer switch involves high-voltage electricity, and there is absolutely no room for error. A professional electrician’s first priority is always creating a completely safe work environment before a single wire is touched.

This preparation phase is non-negotiable. It starts with having the right professional-grade tools and personal protective equipment (PPE). You won't see a licensed electrician show up with a basic homeowner's toolbox; they carry specialized gear designed for the specific risks involved with residential electrical panels.

Essential Tools and Safety Gear

A proper installation requires more than just a screwdriver and a pair of pliers. Professionals rely on specific equipment to ensure every step is performed safely and accurately. This isn't just about owning the tools; it's about using them to verify safety at every single stage.

Before starting any transfer switch installation, a professional electrician will lay out their toolkit. It's a methodical process that ensures nothing is overlooked. Here’s a look at what’s inside a pro’s tool bag.

Having these tools on hand isn't just about compliance—it's about a deep-seated respect for the power you're working with. Every item on this list plays a role in preventing a catastrophic mistake.

The single biggest risk in any electrical job is assuming a circuit is dead when it isn't. Professionals never assume. They shut down the power, lock it out, and then test multiple times with a voltage tester to verify. This methodical approach is what prevents life-threatening accidents.

De-Energizing Your Home’s Electrical System

The most important safety procedure, without question, is to completely de-energize the main service panel. This is more involved than just flipping the main breaker. A licensed electrician follows a strict lock-out/tag-out protocol.

This means a physical lock is placed on the main breaker so it physically cannot be turned back on until the work is finished and the lock is removed by the person who placed it. It's a simple but incredibly effective safety measure that guarantees a hazard-free work environment from start to finish.

It’s this commitment to safety and procedure that separates a professional installation from a dangerous gamble. At RC Generators and Electric, our certified electricians in Los Angeles and Ventura County adhere to these exacting standards on every project, from home backup generator installations to Tesla Powerwall setups.

If you're considering a home backup system for your California home, make sure it’s installed with the highest level of safety and expertise. Contact RC Generators and Electric today for a professional consultation.

Choosing the Right Location for the Switch

Figuring out where to put your transfer switch is just as critical as how you wire it. A true professional installation isn't just about connecting wires; it's about smart planning to guarantee safety, durability, and full compliance with the National Electrical Code (NEC) and local California building codes. Getting the location right from the start is the foundation of a reliable system.

The best spot for the switch is almost always indoors, somewhere dry, clean, and easy to get to. In most homes, this means right next to your main electrical panel.

Placing it close to the panel is a smart move for a couple of reasons. First, it shortens the run of the heavy-gauge wire needed to connect everything, which can save you money on materials and even improve electrical efficiency. Second, it keeps all the core components of your home's electrical system in one consolidated, easy-to-inspect spot.

Common Placement Considerations

A seasoned electrician won't just drill a hole and mount the box. They'll walk through your space and weigh several factors to find that perfect balance between what the code requires and what makes practical sense for you.

Here’s what we look for when scoping out a location:

• Protection from the Elements: The switch absolutely must be shielded from moisture, extreme heat or cold, and any potential for physical damage.

• Easy Access: You or a technician will eventually need to get to the switch for maintenance, testing, or an emergency shut-off. It can't be buried behind shelves or in a cramped crawlspace.

• Good Ventilation: While it’s not a huge heat source, you still want to ensure there's enough airflow around the unit to prevent any chance of it overheating.

One of the most common mistakes we see is a transfer switch installed in a damp, unfinished basement or a cluttered corner of a garage. Moisture is the enemy here—it can corrode the sensitive electrical components inside, leading to early failure and a genuinely hazardous situation. A proper installation on a dry, accessible utility room wall ensures your system stays safe and dependable for years.

The whole process of transferring power is a lot like how banks transfer money—both demand precision, security, and a standardized process to prevent catastrophic errors. Think about how financial services use strict standards like ISO 20022 for wire transfers to ensure everything goes smoothly. In the same way, a properly located and installed transfer switch ensures a flawless transfer of power from the grid to your generator.

Making the right call on location from the get-go saves you from major headaches down the road. If you're unsure about the best spot for a transfer switch in your Los Angeles or Ventura County home, our experts at RC Generators and Electric can provide a professional assessment to get it right the first time.

How Professionals Handle the Wiring Process

While this guide is designed to help California homeowners understand what a quality job looks like, the actual process of wiring a transfer switch should only be handled by a licensed electrician. It’s a precise, methodical task where every single connection is critical for safety and reliability. A professional ensures every pathway is perfect to guarantee a safe, consistent flow of power.

It all starts with securely mounting the transfer switch, usually right next to your main electrical panel. From there, the electrician runs a conduit—a protective metal pipe—between the switch and the panel. This isn't just for looks; the conduit is a non-negotiable, code-required step that shields high-voltage wiring from physical damage, moisture, and potential fire hazards.

Once the physical housing is in place, the meticulous wiring begins. The goal is to build a seamless bridge between your generator, your home's most important circuits, and the utility grid.

The Art and Science of Wire Connections

Wiring isn’t as simple as connecting Point A to Point B. It’s a science that demands the right materials and mechanically perfect connections. Two of the most critical parts of the job are choosing the right wire gauge and properly securing every single terminal.

A professional electrician will carefully calculate your home's electrical load to determine the appropriate wire gauge (its thickness). Using a wire that's too thin for the amount of electricity it needs to carry is one of the biggest fire risks in any electrical project. The wire can overheat, melt its insulation, and easily ignite nearby materials. This is why pros strictly follow National Electrical Code (NEC) guidelines to match the wire size to the circuit's breaker rating.

For instance, a standard 30-amp generator circuit absolutely requires at least 10-gauge copper wire. A larger 50-amp circuit for a more powerful system needs beefier 6-gauge wire. There’s zero guesswork here; it's all based on proven safety standards.

The single most overlooked detail by amateurs—and the one that causes the most failures down the road—is an improper connection. Every screw terminal in a transfer switch and electrical panel has a specific torque value, measured in inch-pounds. A professional uses a calibrated torque wrench to tighten each connection to this exact specification, ensuring a rock-solid electrical bond that won't overheat.

Mapping the Electrical Pathways

With the main connections established, the electrician then carefully routes power from the generator's inlet box to the transfer switch. They also connect the transfer switch to the specific circuits in your main panel that you've chosen for backup power. This is where you can really see an expert's craftsmanship.

• Clean and Organized Wiring: Inside the panel and switch, wires should be neatly organized, bent with precision, and trimmed to the perfect length. A messy "spaghetti" panel is often a red flag for rushed, unprofessional work.

• Proper Grounding and Bonding: The grounding system must be connected flawlessly. This is what protects your home, your family, and your expensive appliances from electrical faults and power surges.

• Clear Labeling: Every new connection and re-routed circuit is clearly and permanently labeled. This simple step makes future service calls much simpler and safer for any technician who might work on your system years from now.

This meticulous approach is the hallmark of professional work. For a more detailed look at the entire process from start to finish, our Generac generator installation guide offers a great overview of what a full, professional setup looks like.

Ultimately, understanding these steps helps you recognize the quality and safety that a licensed electrician from a reputable company like RC Generators and Electric brings to every installation in the Los Angeles and Ventura County areas.

Ready to ensure your home is protected by a professionally installed backup power system? Contact RC Generators and Electric for a free, no-obligation estimate today.

Selecting and Connecting Essential Circuits

One of the most important parts of any transfer switch installation is deciding what actually gets power when the grid goes down. This isn't about lighting up the whole house; it's a strategic move to keep your most important appliances and systems running. A good electrician will walk you through identifying these critical circuits and then physically move them from your main electrical panel over to the new transfer switch sub-panel.

Think of it as a conversation about your family’s priorities. For most homeowners, the list starts with the non-negotiables.

Identifying Your Home's Critical Loads

Almost everyone’s list includes the refrigerator and freezer (to keep food from spoiling), some key lights in the kitchen and bathrooms, and the furnace or HVAC system to maintain a comfortable temperature. It's about safety and basic comfort.

From there, we get into more personal needs. Do you have essential medical equipment that needs constant power? Or maybe a home office setup that keeps your business running, no matter what’s happening outside?

Each of these circuits is what we call an electrical "load"—it’s the amount of power a device draws while it's on. This is where a pro brings in the concept of load management.

Load management is the art of balancing the power demand across all the circuits you've chosen. It’s how we make sure the total wattage of everything running at once never overwhelms your generator. Get this wrong, and you risk overloading the system, which could shut everything down right when you need it most.

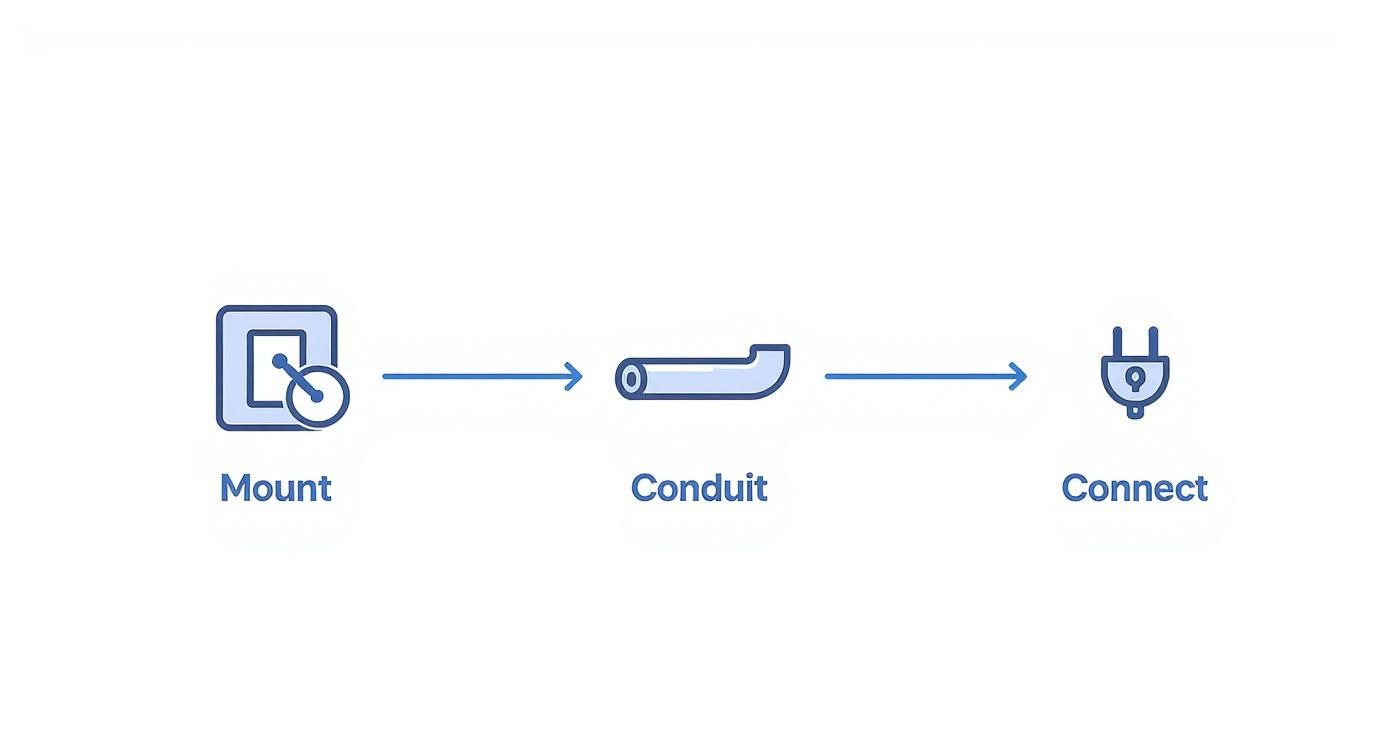

The infographic below shows the basic steps a professional takes to physically connect the switch, getting it ready for all those essential circuits we just talked about.

As you can see, it involves securely mounting the switch, running conduit for protection, and making the main connections. This lays the groundwork for wiring up your hand-picked circuits.

A Real-World Wattage Calculation

Let's say you've picked a few key circuits to back up. A typical setup might look something like this:

• Refrigerator: 800 watts

• Furnace Blower: 700 watts

• Sump Pump: 1,000 watts

• Essential Lights & Outlets: 500 watts

An electrician will add up the total running wattage, which in this case is 3,000 watts. But here's the critical part: they also calculate the starting wattage. Anything with a motor, like your fridge or sump pump, pulls a huge surge of power for a split second just to get going. A pro makes sure your generator can handle that peak demand, not just the steady running load.

This calculation is also what determines the right wire size for each circuit. Managing these electrical loads correctly is a bit like how complex financial networks handle massive transactions. The global foreign exchange market, for instance, processes around $520 billion daily, and wire transfers are a huge part of that. Those systems need a rock-solid, secure infrastructure to manage that volume safely—just like your home's backup system needs proper wiring and load management to handle electricity without failing.

By carefully selecting and balancing these circuits, your electrician ensures your backup system runs like a well-oiled machine, putting power exactly where you need it, when you need it.

Final Testing for Your Peace of Mind

A professional installation isn't finished just because the tools are packed away. The job is only complete once the system has been put through its paces and thoroughly tested. This is where you see the real value in your investment—confirming your entire backup power system works exactly as it should when you need it most. It’s the final quality check that turns a box of wires and components into a reliable safety net for your home.

An electrician starts this final phase with a detailed inspection. They’ll go back over every connection, making sure everything is secure and properly torqued. This eliminates the risk of loose wires, which are a common cause of failure and a serious hazard. They’ll also neatly label all the new circuits in the transfer switch panel, creating a clear map for any future work.

Simulating a Power Outage

The most important part of this whole process is the live simulation. To mimic a real-world outage, the electrician will shut off the utility power at your main breaker. This is the moment of truth.

Within a few seconds, you should see the automatic transfer switch (ATS) jump into action. It tells your generator to start up, and once the generator is running at a stable speed, the ATS seamlessly transfers your chosen circuits to generator power. The electrician will then walk through the house to confirm that all the designated appliances—like your refrigerator, key lights, and HVAC system—are running smoothly and getting stable voltage.

This hands-on test is non-negotiable. It’s the only way to prove that the switch properly isolates your home from the grid, fires up the generator on cue, and delivers clean power where it’s needed. It's the ultimate confirmation that your system is ready for a real emergency.

Final Walk-Through and System Handover

After a successful test run, the electrician restores power from the grid. You'll see the system automatically transfer everything back and shut down the generator.

From there, they’ll give you a complete walk-through of the entire system. They'll show you how to check the system’s status, explain any manual overrides, and answer any questions you have. The goal is to make sure you feel confident and in control.

This focus on quality and safety is why California homeowners trust professionals for critical electrical projects. It’s similar to how global payment systems are being redesigned to be more user-friendly and efficient. High transfer fees have long been a pain point in global finance, and experts are constantly improving the infrastructure to make these systems better. You can see a similar push for innovation in reports from the World Bank’s findings on remittance prices and digital trends.

For homeowners in Los Angeles and Ventura County, this professional sign-off delivers true peace of mind. Whether you're installing a home generator or an EV charger, knowing your system was installed by an expert and tested from top to bottom is priceless.

If you’re ready for a backup power solution you can trust, contact RC Generators and Electric today for a professional consultation and installation.

Frequently Asked Questions

When it comes to wiring a transfer switch, it’s natural to have a few questions. We hear a lot of the same ones from homeowners in Los Angeles and Ventura, so let's clear up some of the most common points.

Can I Install a Transfer Switch Myself?

Let’s make this simple: absolutely not. This isn't a weekend DIY project. Wiring a transfer switch involves high-voltage electricity and requires a deep understanding of the National Electrical Code.

One wrong move could lead to electric shock, fire, or catastrophic damage to your home’s electrical system. To keep your family and property safe, a licensed electrician is required to handle the installation and ensure everything is up to code.

What's the Difference Between a Sub-Panel and a Whole-House Transfer Switch?

It all comes down to how much of your home you want to power during an outage.

• A sub-panel transfer switch is for the essentials. It powers a handful of pre-selected circuits, like your refrigerator, furnace, a few lights, and maybe your home office setup. This is a common choice for homeowners who want to keep critical systems running.

• A whole-house transfer switch connects directly to your main service panel. As the name implies, it's designed to provide backup power to your entire home. This is the ideal solution for full-system backup, assuming your generator is powerful enough to handle that much load.

RC Generators and Electric specializes in installing whole-house systems for complete peace of mind, ensuring every part of your home stays powered on.

How Long Does Professional Installation Take?

For a typical residential home, a skilled electrician can usually get a transfer switch installed in about 4 to 8 hours.

This can change depending on a few factors, like the complexity of your home's wiring, how accessible your main panel is, and the specific type of switch you've chosen.

Is a Transfer Switch Really Necessary?

Yes. It's not just a good idea—it’s the law. The National Electrical Code is crystal clear: any standby generator connected to your home's wiring must use an approved transfer switch.

It’s the only safe and legal way to do it. The switch physically prevents dangerous back-feeding, where electricity from your generator travels back onto the utility lines. This protects line workers from severe injury or even death while they're working to restore power to your neighborhood.
