When you're figuring out what size wire for 100 amp service, the quick answer is usually a 4 AWG copper wire or a 2 AWG aluminum wire. But that’s just the starting point. The right choice for your project in California really depends on a few key factors.

Your Quick Guide to 100 Amp Wire Size

Choosing the right wire for a 100-amp circuit is a critical decision, whether you’re upgrading your home's main panel or hooking up a powerful home backup generator. Think of the wire as the main artery delivering electricity where it needs to go.

Using a wire that’s too small is like trying to push a river’s worth of water through a garden hose. It creates dangerous heat, which can lead to equipment failure or even a fire, a serious concern for homeowners in fire-prone areas.

Understanding Wire Gauge

Electrical wire thickness is measured using the American Wire Gauge (AWG) system. It works in reverse, which can feel a little counterintuitive at first: the smaller the AWG number, the thicker the wire.

For a heavy-duty job like a 100-amp service, you need a thick, low-gauge wire to handle the electrical load without overheating.

The wire material—either copper or aluminum—also plays a huge role. Copper is the better conductor, so you can get away with a slightly thinner wire (a higher AWG number) to carry the same current as a thicker aluminum one. This is why you always see different size recommendations for the two.

Recommended Wire Sizes for a 100 Amp Service

To make this simple, here’s a quick-reference table that lays out the standard wire sizes for a 100-amp service, based on guidelines from the National Electrical Code (NEC).

These numbers are a great starting point, but they assume standard conditions. Factors like how long the wire run is, the ambient temperature where it’s installed, and what kind of conduit you're using can all change the final calculation.

Knowing the full scope of your project helps, too. For example, understanding the average cost to upgrade an electrical panel will help you budget for the entire job, including the correct wiring and professional installation.

Key Takeaway: The go-to choices are typically 3 AWG for copper and 1 AWG for aluminum for a 100-amp service entrance. Just remember, these are baselines. A long wire run or a hot attic might require an even thicker wire to be safe.

For homeowners in Los Angeles and Ventura County, especially those getting ready for power outages with a Generac generator, getting the wiring right is all about safety and reliability. A licensed electrician won’t just pick the right wire; they’ll make sure the entire installation is up to code and built to last.

If you’re planning a major electrical installation like a home backup system, give RC Generators a call. We’ll provide a professional consultation to make sure your home is powered safely and correctly.

Why Copper and Aluminum Wires Are Different

When you're wiring up a 100-amp service, the choice almost always comes down to two materials: copper and aluminum. Think of it like the plumbing in your house. Electricity flows through wires just like water flows through pipes.

In this analogy, copper is like a wide, perfectly smooth pipe. It lets a massive amount of electricity flow through with almost no resistance. This incredible efficiency is why copper has long been the gold standard for electrical wiring.

Aluminum, on the other hand, is like a slightly narrower pipe. To move the same volume of electricity, you just need a bigger pipe. That's exactly why you have to use a thicker gauge of aluminum wire to handle the same amperage as a thinner copper one.

Comparing Conductivity and Cost

The real difference between these two metals is their conductivity—how easily electricity can pass through them. Copper is one of the best conductors out there, second only to silver. That means less energy gets wasted as heat, making it an incredibly efficient and safe option.

Aluminum isn't quite as conductive. An aluminum wire needs to be roughly 66% larger than a copper wire to safely carry the same current. This is why the AWG numbers for aluminum are always lower (which means a thicker wire) for the same ampacity.

For homeowners in Southern California, this choice can make a real difference in the budget for big projects, like installing a whole-home Generac backup generator. The cost savings with aluminum can be pretty substantial, especially over longer distances.

So, why would anyone even consider aluminum? It boils down to two things: cost and weight. Aluminum is significantly lighter and cheaper than copper. For a major project like wiring a main service panel or running a line to a detached workshop, those savings can really add up.

Safety and Modern Aluminum Alloys

Now, you might have heard some stories about aluminum wiring in the past. Older aluminum alloys had issues with expanding and contracting with temperature changes, which could cause connections to loosen and create a fire hazard.

But here's the good news: modern electrical-grade aluminum wiring is made from a completely different, much more stable alloy. When it's installed correctly by a licensed electrician using the right tools and connectors, today's aluminum wire is perfectly safe and reliable.

Professionals use special antioxidant compounds to prevent corrosion and torque screwdrivers to make sure every connection is tightened to precise specifications, eliminating the risks tied to those old installations.

Over the last decade, there's been a clear shift toward using aluminum for 100-amp services, especially where cost is a major factor. For a 100-amp service, the NEC says 1 AWG aluminum wire does the same job as a 3 AWG copper wire. Between 2010 and 2020, aluminum wire use in new residential construction jumped from 15% to nearly 35% in North America, thanks to lower costs and better technology. But proper installation is everything—improperly installed aluminum was blamed for up to 25% of electrical fires in homes from a certain era. You can learn more about the specifics of wire sizing recommendations on this resource.

Making the Right Choice for Your Home

So, which one is right for your project? It’s all about balancing your budget with performance and the unique needs of your installation.

• Copper: It's the top performer, hands down. It's more durable and takes up less space in the conduit. If performance is your number one priority, copper is the way to go.

• Aluminum: It offers huge cost savings and is much lighter, making it easier for electricians to handle on long service entrance runs. It is a completely safe and viable option when installed by a pro who knows what they're doing.

For any 100-amp installation, whether it’s for a new solar-powered generator or a main panel upgrade, you need professional expertise. At RC Generators, we help homeowners across Los Angeles and Ventura County make the smart choice, ensuring every job is safe, up to code, and built to last. Contact us for a professional consultation today.

Decoding Electrical Codes and Safety Standards

Trying to understand electrical work can feel like learning a new language, complete with its own rulebook. That rulebook is the National Electrical Code (NEC), and it’s the official guide for keeping every electrical project in the United States safe. Think of it as the ultimate set of instructions designed to protect your property and family.

When it comes to big jobs—like hooking up a new Generac home backup generator or upgrading your main service—following the NEC isn’t just a good idea, it’s the law. These standards make sure every part, especially the wire size for a 100 amp service, is chosen to handle the load safely and prevent dangerous overheating.

The Role of NEC in Wire Selection

Electricians don’t just eyeball a job and guess which wire to use. They rely on detailed tables and guidelines straight from the NEC to determine the correct wire gauge. It’s a precise science, not a one-size-fits-all situation.

A few key factors come into play, and each one can change the required wire size to keep things safe.

• Insulation Type: Wires are coated in different types of protective insulation, and each has a maximum temperature rating. A wire with a high-temp rating like THHN (90°C) can handle more current than one with a lower rating, sometimes allowing for a slightly smaller wire under the right conditions.

• Ambient Temperature: The environment where the wire is installed makes a huge difference. A wire running through a blistering hot attic in Southern California is going to get a lot hotter than one in a cool, open basement. The NEC has "correction factors" that force electricians to use a thicker wire in hot environments to make up for that extra heat.

• Conduit Fill: When you bundle multiple current-carrying wires together inside a pipe (conduit), they create more heat as a group. The NEC has strict rules on how many wires can be packed into a conduit before you have to upsize them to prevent overheating.

These rules ensure that your entire system, including your main panel or load center, operates safely without ever being pushed to its limits. If you want to get a better handle on how your panel works, check out our guide on what is a load center.

Local Codes and Professional Expertise

While the NEC sets the rules for the whole country, cities and counties like Los Angeles or Ventura often add their own local amendments. These codes can be even stricter, often addressing regional issues like seismic safety or high fire risk. This is a huge reason why serious electrical work should never be a DIY project.

A licensed electrician knows the NEC inside and out, but just as importantly, they know the specific local codes for your neighborhood. They have the hands-on experience to read the complex tables, apply the right adjustments for heat and bundling, and make sure your project is 100% safe and ready to pass inspection.

The system for standardizing wire sizes, known as the American Wire Gauge (AWG), has been around since 1857. For a 100-amp service, the core recommendations—3 AWG copper or 1 AWG aluminum—have been incredibly consistent for decades. In fact, data shows over 90% of new homes built between 1970 and 2020 used either 2 AWG or 3 AWG copper for their 100-amp panels. While the NEC gets updated every three years, these foundational wire sizes have proven themselves as the benchmark for safety. You can learn more about the history of wire gauge standards on BluettiPower.

Key Insight: Knowing the basics of the NEC is great for homeowners, but only a licensed professional has the expertise to apply these complex rules correctly. They ensure your home's electrical system is safe, compliant, and ready for powerful additions like a home backup generator.

For California homeowners, compliance isn't just about passing an inspection—it's about safety and peace of mind. If you're thinking about a major electrical upgrade or installing a home generator, don't leave it to guesswork. Contact RC Generators for a professional consultation. Our team of licensed electricians makes sure every installation meets the highest safety standards set by both national and local codes.

How Distance Impacts Your Wire Size

Ever tried watering a garden at the far end of your yard with a super long, skinny hose? By the time the water gets there, it’s just a trickle. The pressure is gone. Electricity running through a wire works in a surprisingly similar way. We call this effect voltage drop.

Over long distances, the natural resistance inside any wire causes the voltage to dip. While a tiny drop is normal, a big one can starve your appliances of the power they need to work right. This leads to motors overheating, electronics glitching, and lights dimming—all of which can shorten their lifespan.

That’s why distance is one of the most critical factors an electrician considers when sizing wire for a 100 amp service, especially for larger properties here in Southern California.

Understanding Voltage Drop in Practice

The National Electrical Code (NEC) has clear guidelines on this. For most circuits, you need to keep voltage drop to 3% or less. On a standard 240-volt service, that means the voltage at the end of the line shouldn't ever fall below 232.8 volts. If the wire is too thin for the distance, the drop will blow past that safe limit.

To fix this, we have to increase the wire's thickness—or "upsize" the gauge. A thicker wire has less resistance. Think of it like swapping that skinny garden hose for a wide fire hose. The pressure (voltage) stays strong all the way to the end.

This isn't an upsell; it's a non-negotiable part of a safe, functional electrical system. When a pro from RC Generators quotes a larger, more expensive wire for a long run to a detached workshop or a new solar-powered generator, they're doing it to make sure your equipment gets the clean, stable power it needs.

How Far Can You Run a 100 Amp Wire?

The bottom line is simple: the longer the circuit, the thicker the wire needs to be. A wire that's perfectly fine for a 50-foot run will be completely undersized and unsafe for a 200-foot run.

This is where a licensed electrician’s expertise comes in. They have to balance multiple factors to land on the right wire size.

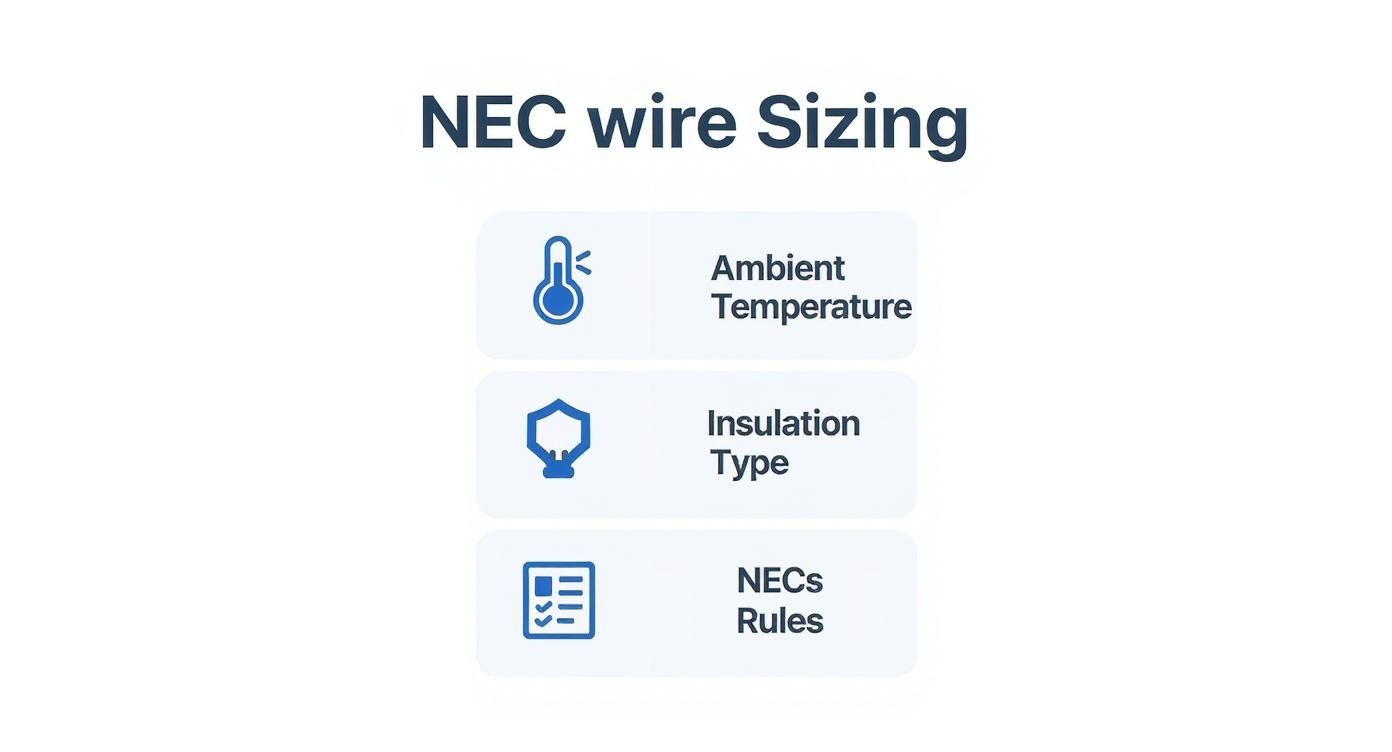

As the infographic shows, it’s not just a simple lookup. Ambient temperature, the type of insulation on the wire, and NEC rules all come into play.

To give you a clearer picture, the table below shows how the required wire size for a 100A, 240V circuit increases over distance to keep that voltage drop under 3%.

Voltage Drop and Required Wire Size Adjustments (100A at 240V)

Notice how the AWG number gets smaller as the distance gets longer? That's because a smaller gauge number means a much thicker, heavier wire. This is a common scenario for homeowners in the Los Angeles and Ventura areas installing a subpanel in a guesthouse or placing a Generac standby generator at the edge of their property.

Key Takeaway: Distance isn't a suggestion; it's a rule. Using an undersized wire over a long run is a recipe for poor performance and a serious safety hazard.

Calculating voltage drop isn't guesswork. It involves specific formulas and a deep knowledge of NEC tables, which is why it's a job for a qualified pro. If your project involves running power over a significant distance, contact RC Generators. Our licensed electricians will do the math to guarantee your installation is safe, compliant, and delivers reliable power right where you need it.

Grounding Wires and Conduits: The Unsung Heroes of Your Electrical System

So far, we've covered the "hot" and "neutral" wires that do the heavy lifting, carrying power to and from your home. But the job isn't done. For a 100-amp circuit to be truly safe and complete, two other components are just as critical: the conduit that protects the wires and the grounding wire that protects you.

Think of conduit as a suit of armor for your electrical wiring. This protective tubing—usually metal or PVC—shields your expensive service entrance wires from physical damage, moisture, and corrosion. For a major installation like a home backup generator, especially in a place like Ventura County with its variable weather, conduit is non-negotiable. It's what ensures the system lasts for decades.

The Grounding Wire: Your Electrical Safety Net

Now for the most important safety feature in any electrical system: the grounding wire. If the conduit is the armor, the grounding wire is the system's foolproof safety net.

Under normal conditions, this wire does absolutely nothing. But when something goes wrong—like a frayed hot wire accidentally touching a metal surface, or a massive power surge during a storm—it instantly springs into action.

An electrical fault needs somewhere to go, and fast. The grounding wire provides a safe, low-resistance path for that dangerous stray electricity to travel directly into the earth. This immediately trips the circuit breaker, shutting off the power and preventing a potentially lethal shock.

Without a proper ground, that rogue electricity would hunt for the easiest path it can find. All too often, that path is through a person touching the faulty equipment. The grounding wire is an absolute must for any safe installation, especially for high-power systems like a Generac generator that you rely on to keep your family safe.

Sizing Your Grounding Wire

Just like the main conductors, the grounding wire has to be sized correctly according to the National Electrical Code (NEC). If it's too small, it can't handle a massive surge of fault current. It could melt before the breaker even has a chance to trip, defeating its entire purpose.

For a 100-amp service, the requirements are pretty straightforward. The NEC has specific tables for this, but here’s a simple breakdown for most residential jobs:

• For Copper Service Wires: If you're running copper for your main conductors, you'll need a minimum 8 AWG copper grounding wire.

• For Aluminum Service Wires: If your main conductors are aluminum, the minimum size for your copper grounding wire bumps up to 6 AWG.

You'll notice the grounding wire is quite a bit smaller than the main conductors. That’s because it’s only designed to carry a massive, dangerous current for a split second—just long enough to trip the breaker and make the system safe.

Why Professional Installation is Key for Safety

Properly installing conduits and ensuring a solid, unbroken grounding connection are critical jobs that demand professional skill. This is especially true here in California, where local codes in places like Los Angeles have specific requirements for seismic safety and outdoor installations. A licensed electrician will make sure the entire system is bonded and grounded correctly, from the main panel all the way to every outlet.

When it comes to your home’s main power service or a new backup generator, safety can't be an afterthought. At RC Generators, our licensed electricians ensure every single component—including the vital grounding and conduit systems—is installed to the absolute highest safety standards.

Ready to ensure your home’s electrical system is safe, reliable, and prepared for anything? Contact RC Generators today for a professional consultation and expert installation.

Why This Is Not a DIY Project

After digging into everything from wire materials and electrical codes to voltage drop and grounding, one thing should be painfully obvious: figuring out what size wire for 100 amp service and actually installing it is a job loaded with complexity and very real danger.

This isn't like swapping out a light fixture or replacing a faulty outlet. A single mistake here doesn't just mean a failed inspection—it can lead to a devastating electrical fire, fried appliances, or even fatal electrocution.

Handling a 100-amp service means you're working with lethal amounts of electricity. Professionals use specialized tools, personal protective equipment (PPE), and follow strict safety procedures for a reason. Without that training and gear, a DIY attempt is just asking for trouble. The financial risks are huge, too; an improper installation can void your homeowner's insurance, leaving you on the hook for any damage.

Local Codes and Inspection Headaches

For homeowners here in Los Angeles and Ventura County, the challenge is more than just the technical work. California has some of the toughest building codes in the country, and local jurisdictions often pile on their own specific requirements.

A licensed electrician doesn’t just know the National Electrical Code; they live and breathe the local rules, making sure every detail—from the type of conduit to the exact placement of the panel—is 100% compliant.

This local expertise is what gets you through the permitting and inspection process without a hitch. A pro handles the paperwork, schedules the inspections, and knows exactly what the inspector is looking for. A failed inspection on a DIY job? That can mean costly fines, being forced to tear out your work, and major delays.

The Bottom Line: The peace of mind that comes from knowing your home’s electrical system is safe, compliant, and professionally installed is priceless. It’s an investment in your family's safety and your property's value.

Preparing for the Future

A professionally installed 100-amp service isn't just about meeting today's needs; it's about setting your home up for tomorrow. Thinking about adding an EV charger, solar-powered generators, or a whole-home battery backup? You need a rock-solid electrical foundation to make it happen.

For complex additions like solar panels, professional expertise is non-negotiable. Avoid serious hazards by relying on professional solar installation services to handle these kinds of critical projects.

A skilled electrician makes sure your system can handle these future loads safely. Sometimes that means more than just running new wire; it might require a full panel upgrade. If you're planning a bigger project, learning about the benefits of professional main panel upgrades is a smart next step. An expert ensures your home is ready for anything, from a new hot tub to a Generac home backup generator that keeps the lights on during fire season and power outages.

To ensure your home is safe, compliant, and ready for whatever comes next, trust the licensed professionals at RC Generators. We provide expert consultations and installations for homeowners throughout Los Angeles and Ventura County. Contact us today to get started.

Frequently Asked Questions

Even after you've got the basics down, a project like a 100-amp service can bring up a few more questions. Here are some of the most common ones we hear, with straightforward answers to clear things up.

Can I Use the Same Size Wire for a 100 Amp Subpanel?

Yes, the starting point is the same—you'll still begin by looking at 3 AWG copper or 1 AWG aluminum. But the final answer almost always comes down to distance.

If you’re running power to a detached workshop, a guest house, or even a far-flung corner of your property, you'll almost certainly need to upsize the wire. This is to compensate for voltage drop and ensure that whatever you're powering gets the steady, full voltage it needs to run safely. This isn't a guess; it's a calculation a licensed electrician has to perform.

What Is the Real Cost Difference Between Copper and Aluminum?

The savings you get with aluminum are pretty significant and can make a real difference in your budget. Generally, you can expect aluminum wire to cost 30-50% less than copper wire with the same current-carrying ability. Over a long run, that can easily add up to hundreds of dollars.

Of course, those savings come with a major catch: proper installation is non-negotiable. An electrician has to use special antioxidant compounds and connectors specifically designed for aluminum. This prevents corrosion and keeps the connections tight and safe for the long haul. Your electrician can help you weigh the cost savings against the specific needs of your project, like a home generator installation.

Is a Permit Required to Install a 100 Amp Circuit in California?

Absolutely. In California, putting in a new 100-amp circuit or upgrading your main service panel is major electrical work, period. This kind of project always requires a permit from your local building department, whether you're in Los Angeles or Ventura.

A permit isn't just a piece of paper. It ensures a qualified inspector signs off on the work, verifying it meets all current electrical codes. This process is designed to protect you, your family, and your home from the dangers of shoddy electrical work.

A licensed electrician, like the team here at RC Generators, will handle the entire permitting and inspection process for you. It’s part of the job, ensuring your installation is fully compliant, safe, and ready to power your home reliably for years to come.
